VADO NOTION 1 OUTLET CONCEALED CHROME THERMOSTATIC VALVE £295 - RRP £495

VADO NOTION 1 OUTLET CONCEALED CHROME THERMOSTATIC VALVE £295 - RRP £495

Square Style Concealed 1 outlet wall mounted thermostatic 3/4" shower valve with rectangular faceplate.

• Chrome Finish
• 12-year manufacturers guarantee
• RRP £495
• *FREE DELIVERY*

Features

A two handle one outlet valve is simple to operate, making it the perfect choice for those looking to control one function, top handle controls flow, the bottom handle controls the temperature.

Product Specifications

• Concealed 2 handle thermostatic shower valve
• Wall mounted
• Thermostatic cartridge V-001C-PLA
• Flow cartridge CEL-002A/B-3/4
• 2 x 3/4” female inlets
• 1 x 3/4” female outlet
• Includes fittings for 1/2” and 3/4” pipework
• Min-max wall mount 68-77mm (standard)
• Optimum installation depth 73mm (standard)
• Min-max wall mount 77-103mm (extension option)
• Optimum installation depth 90mm (extension option)
• Minimum operating pressure required: 0.2 bar  for shower operation, 1.0 bar Bath filler operation

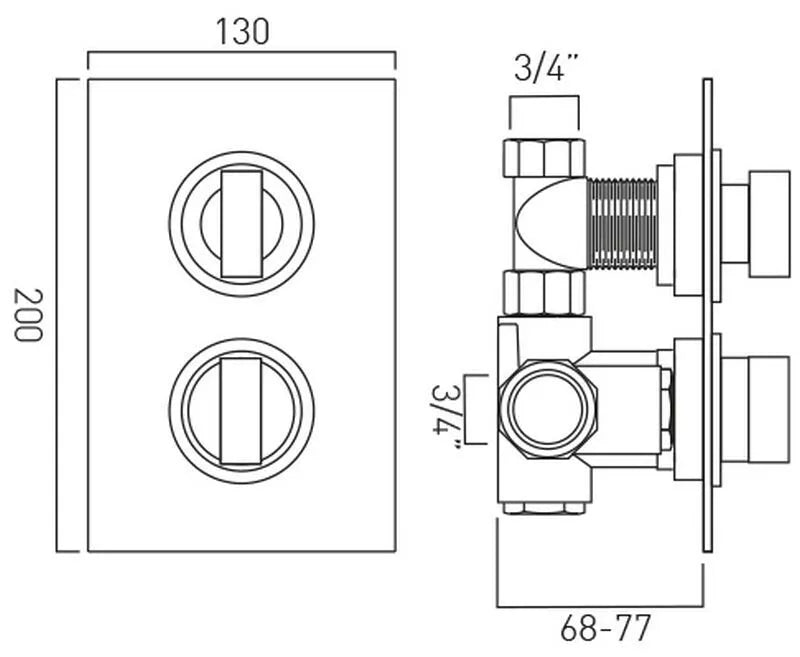

For complete size details please refer to the technical drawing.
